Film Faced Plywood HOUSEPLEX Full Poplar Core

Reference FOB Price: 200.00 USD / m3

Type

Full hardwood core film faced plywood

Material

FULL HARDWOOD CORE,WBP PHENOLIC GLUE

Thickness

9/12/15/18/21MM*1220*2440/610*2440/1250*2500/ or Customizable

Application

construction



Film faced plywood is also called formwork plywood, shuttering plywood, concrete form.

Film faced plywood is the special plywood with two sides coated with wearable and water proof film. The film is adhesive impregnated paper, which are different from melamine paper overlay, PVC, MDO (MDO plywood) and HDO (HDO plywood). The function of the film is to protect the inside wood from moisture, water, weather and extend the plywood’s service life. Film faced plywood can be used in harsh and outside environment: shuttering plywood, formwork plywood, concrete formwork, floorboard, vehicle building.

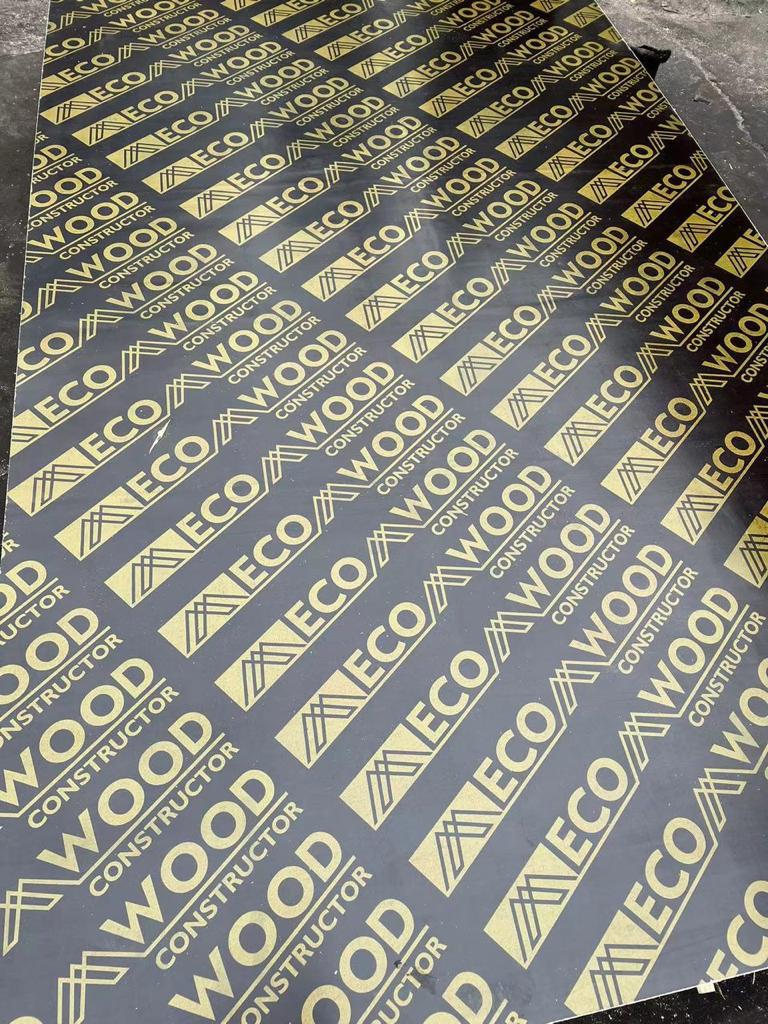

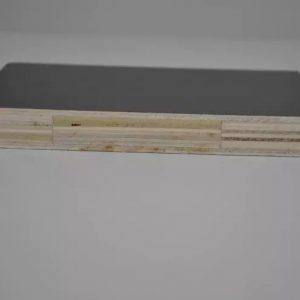

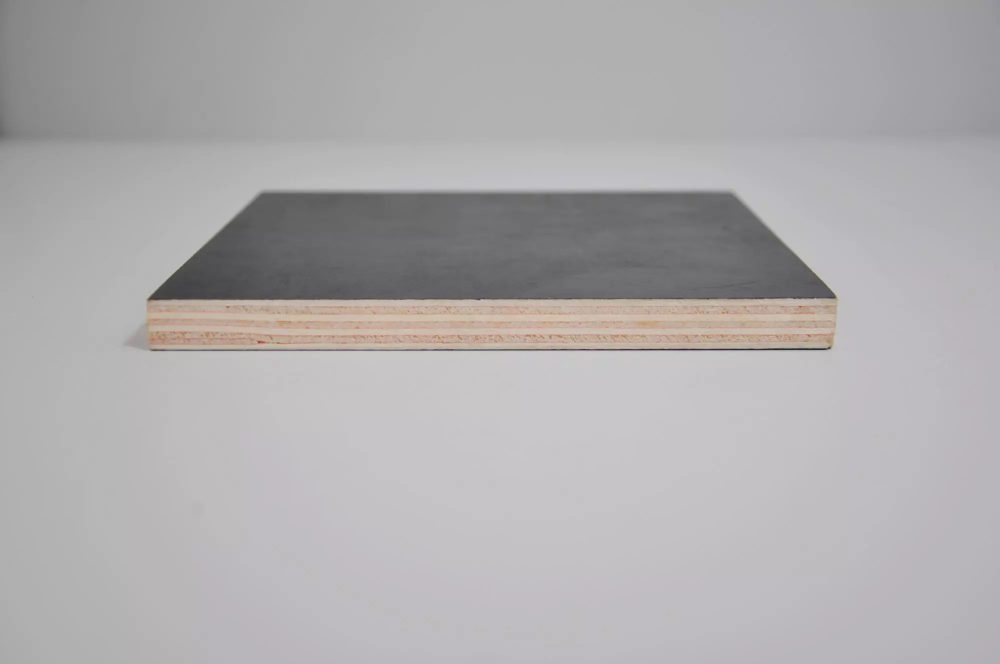

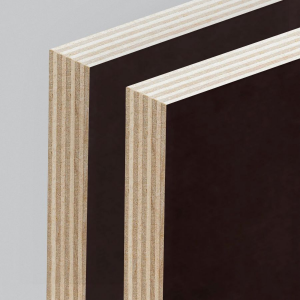

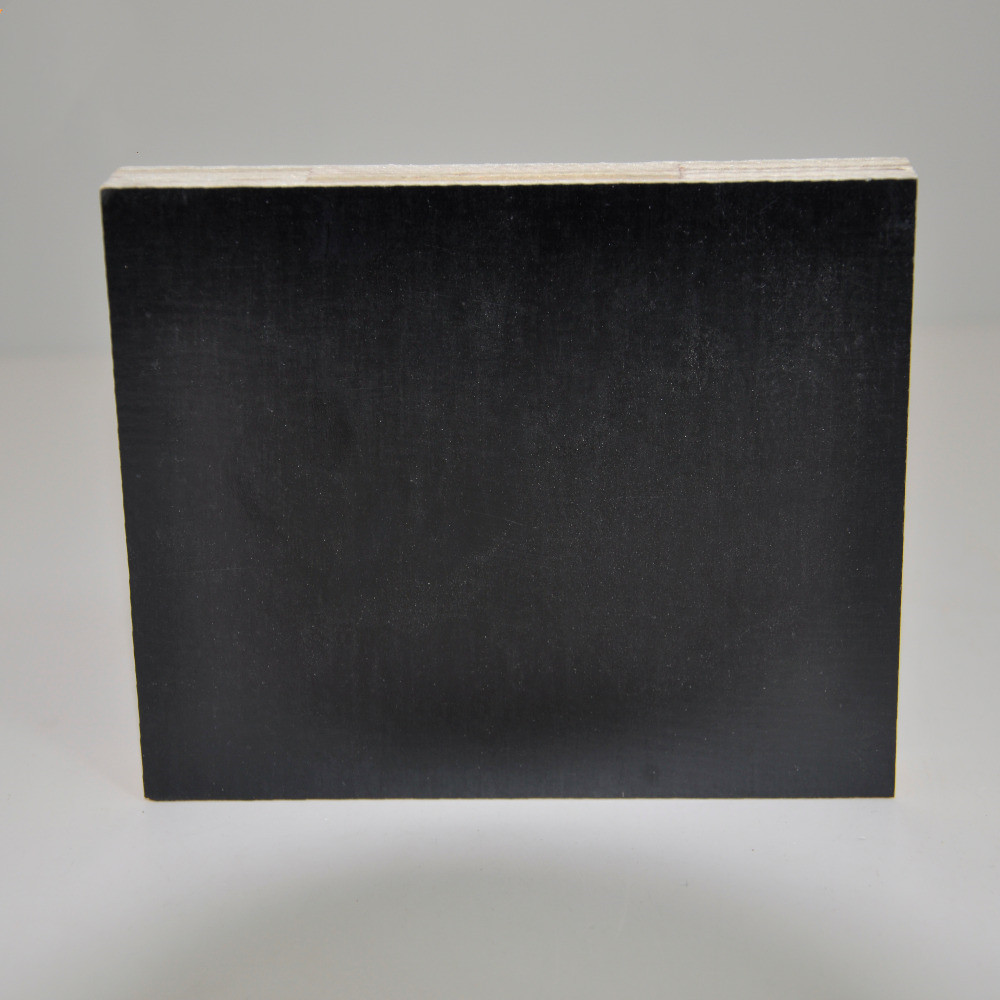

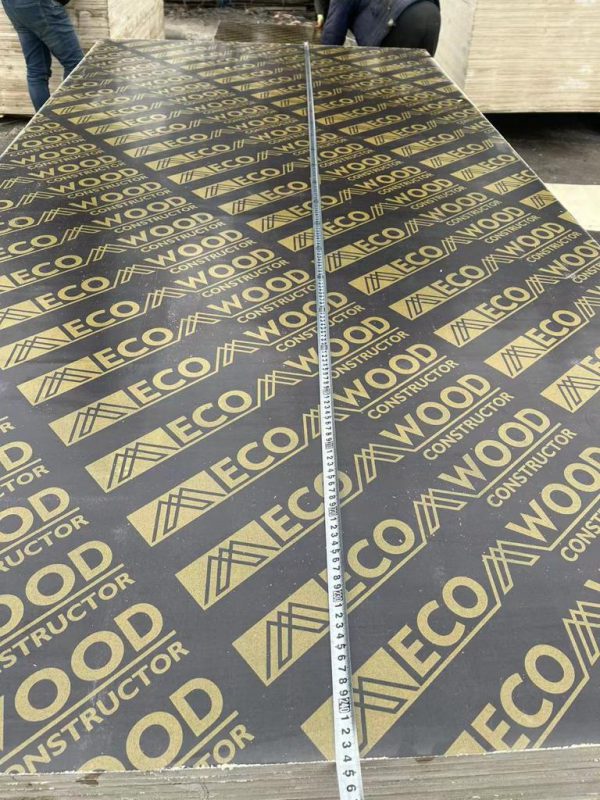

Film Faced Plywood HOUSEPLEX Full Poplar Core



Raw Materials: Full Poplar

Glue:  WBP, Melamine

Core Species: Full Poplar Core

Film: Brown, Black, Red, Green, etc.

Using Times6-12 times









Name

Film Faced Plywood HOUSEPLEX Full Poplar Core

Brand Name

HOUSEPLEX

Size

1.small sizes:915x1830mm,610x2500mm
2.standard sizes:1220X2440mm, 1250x2500mm
3.big size:1500x3000mm/1525*3050mm,(accept customization)

Thickness (mm)

9,12,15,18,21,25, etc. Customization 9mm-25mm.

Thickness Tolerance

+0.5mm upon request

Core

Poplar, Hardwood, eucalyptus, Birch, Combi, Pine

Color of surface/film

Dynea brown /black, Domestic Black/Brown /Red film

Surface Treatment

Smooth/wire mesh(anti-slip)

Edge

Dark brown waterproof paint (other colors as requested)

Glue

The WBP Melamine Glue (Water Boiling around 8-10 hours as what we supply to our clients), The WBP Phenolic glue (Water Boiling over 72 hours), We can customize the plywood with different glue to meet our clients’ requests.

Number of Layers

9mm(5,7,9ply),12mm(7,9Ply)
15mm(7,9,11ply),18mm(7,9,11,13,15ply)

Hot press times

HOUSEPLEX –1 times for whole panel
HOUSEPLEX+—2 times for core and 1 times for film

Moisture

8%-12% at the time of shipment

Usage

Real estate construction /formwork panel



Specification of Film Faced Plywood



(1). Film color: brown, black or others

The most common film is brown film or black film. In China, the brown film faced plywood usually has better quality than black film faced plywood. However, it’s not true all the time. Some black film faced plywood has the same high quality as brown film faced plywood. When you making an inquiry, an experienced salesman will know what the real quality you need.

(2). Quality of Film:

In China, there are 2 classifications of film: Local film and imported film. Local film means films made by Chinese companies. Imported film means film made by foreign companies, like Dynea . Dynea film is the best film brand in China. So, if you require the best film for your plywood, we will use Dynea film.

(3). Core: poplar, hardwood, Eucalyptus, birch

70% of film faced plywood we are selling is poplar film faced plywood , which is high quality and price is competitive. If you need hardwood film faced plywood, we will use hardwood or eucalyptus veneers. If you want film faced plywood for building bridges or high buildings, you can choose hardwood film faced plywood, as its name says, it’s very hard. We also supply birch film faced plywood ,which are hard and durable, too.

(3). Glue: MR glue, WBP(melamine), WBP(phenolic)

We use these 3 types of glue.  As for the knowledge of the glue, you can refer to the following articles:

What’s MR glue-which is commonly used for plywood / film faced plywood / blockboard

What is WBP glue – which is commonly used for WBP plywood / film faced plywood

(4). Size: 1220X2440mm, 1250X2500mm, or 4′ x 8′, standard size, large size, big size, special size

We produce sizes according to customers’ requirement. The widest size can be 2000mm, max length is 6000mm .

(5). Thickness: 4mm-30mm (4mm / 6mm / 9mm / 12mm / 15mm / 18mm / 21mm-50mm )

We supply very thin film faced plywood as 4mm and thickest plywood up to 50mm. This is our advantage.

(6). Packing: Standard Packing. Our packing is standard seaworthy packing。

Applications of Film Faced Plywood



(1) Construction industry: shuttering film faced plywood, concrete form, shuttering concrete form, formwork plywood



Film faced plywood is mainly used for construction. So film faced plywood is also called shuttering film faced plywood, concrete form, shuttering concrete form. Because of this end use, customers usually want WBP film faced plywood, which is more suitable to be used as shuttering for big projects. However, some customers require MR film faced plywood, which are to be used as shuttering for ordinary projects.



(2) Anti-slip film faced plywood: flooring materials for building vehicles, work platforms.

According to the types of face/back, film faced plywood can be divided into smooth film faced plywood and anti-slip film faced plywood. Anti-slip film faced plywood are usually used as flooring materials for vehicles, trucks and platforms.



(3) Film faced plywood can be used for shelves and furniture, too.

Compared with wood veneer faced plywood, film faced plywood is more durable and has more wear-resistant surfaces. So, it can be used for making durable furniture and shelves.
